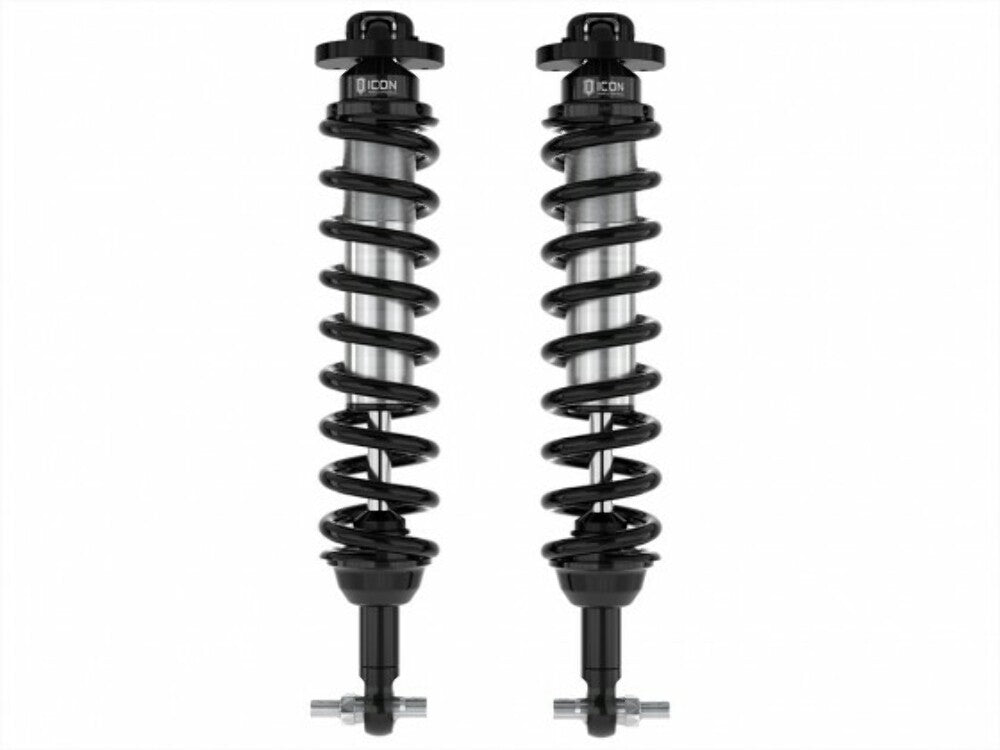

ICON 48600 Fits 2021-2023 Ford Bronco Front 2.5 VS Internal Reservoir Coilover Kit

These precision-manufactured, custom valved Internal Reservoir coilover shocks yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. ICON coilover shocks are fully rebuildable. Our coil springs are custom engineered specifically for Bronco. The big 2.5-in diameter shock body and piston provides efficient damping and cooling, while the massive 7/8" diameter shock rod provides the strength to withstand abuse. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel possible.​
These ICON 2.5 Series coilover shocks are engineered to give the 2021+ Bronco outstanding performance off-road and a smooth ride on the street. Our desert-tested, race-proven shock technology provides superior damping, tuned specifically for the Bronco's suspension and vehicle characteristics. CNC machined shock ends and mounts, body and shaft lengths and coil springs have been custom configured to squeeze maximum travel and articulation out of the Bronco's suspension geometry while providing increased lift height to safely accommodate up to 37-inch* tires. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.When used in conjunction with ICON tubular or billet front Upper Control Arms and Rear Suspension Links and 35" tires*, these coilovers can yield up to 14" of rear suspension travel and up to 11.5" of front suspension travel.

Factory set for approximately 3" suspension lift (for Sasquatch-equipped Broncos; approximately 4" lift for non-Sasquatch Broncos)
Threaded body allows for further lift height adjustment at installer's discretion(adjustable from 2.5-4" of lift height)
Increased wheel travel, up to 14" rear, 11.5" front
100% Bolt-on, no cutting or welding necessary for installation
Vehicle specific design, engineered for maximum performance with Bronco suspension geometry.
CNC machined 6061 aluminum components with a black anodize finish.
High strength alloy CNC machined lower bar pin
ICON engineered coil springs with long-travel, triple-rate rear coil spring
FK rod end bearings for extended longevity and minimal deflection.

*Coilovers are factory-setup for optimal ride height and travel when paired with factory Sasquatch wheels and tires, or aftermarket 35-12.50-17 tires and 17x8.5, 0" offset wheels. 37" tires will also fit but we recommend using our Up-Travel Limiters (sold separately) when installing 37's.

Fitment:  2021-2023 Ford Bronco
